21.10.2019

QSAN XN3002T 2-bay NAS Review

Introduction

QSAN XN3002T 2-bay NAS Review
We would like to thank QSAN for supplying the review sample.

Most of you probably have never heard of QSAN Technology as this is the first time even we have come across a product from this brand. QSAN was founded in 2004, so it is not a new company. Its main purpose is the building of storage systems spanning across the FAS, SAN, DAS, and NAS categories.

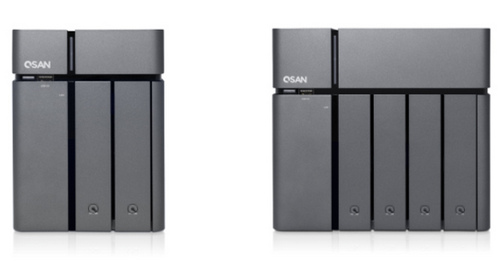

QSAN has six NAS lines and today, we will take a look at the XN3002T belonging to QSAN’s most affordable line. The XN3002T also has a large brother with 4+1 bays instead of 2+1. The first thing to impress is its nice external design, which doesn’t resemble that of any of the competition’s offerings. It is always nice to see something new, especially when it has such a distinctive look.

As already stated, the XN3002T can take two 3.5″ drives, and it has an additional slot for another 2.5″ drive on its side, most likely for an SSD for cache purposes. This NAS is home-oriented even though it has enough RAM (4 GB) because it is equipped with a mainstream CPU that won’t be able to cope with tough tasks.

QSAN XN3002T 2-bay NAS Review

Since QSAN hasn’t been in the NAS game for a while, its OS, QSM, naturally lacks many options and features compared to QNAP’s QTS or Synology’s DSM. But QSAN’s people are determined to enter this market for good, so we will give them some time to improve their operating system and enrich their app ecosystem. Both of those facets are essential for a successful NAS product, where the software is even more important than the hardware.

Specifications

XCubeNAS XN3002T Specifications
Processor Intel Celeron 1.1 GHz Quad-Core Processor
Operating System Embedded Linux
Memory 4 GB DDR3L SO-DIMM, up to 8 GB
Flash 8 GB USB DOM
Storage 2x 3.5″/2.5″ SATA II/III  + 1 SFF disk
File System
  • ZFS file system
  • EXT2 (Virtual Volume)
  • EXT3 (Virtual Volume)
  • EXT4 (Virtual Volume)
  • FAT (Virtual Volume)
  • NTFS (Virtual Volume)
  • HFS + (Virtual Volume)
RAID Levels: Single Disk, JBOD,
RAID 0, 1, 5
Capacity up to 30 TB (4 TB x2 + 2 TB x1)
iSCSI Target & Initiator
Hot-Swap 3x
Networking 2x 10/100/1000 Mbit Ethernet
I/O Ports USB 3.0 x3 (Front x1, Rear x2)
USB 2.0 x2 (Rear)
Dimensions 160 (H) x 119 (W) x 216 (D) mm
Power Supply Internal, 100-240 V
Fan 1x 70 mm (AD0712UB-A7BGL )
Warranty 2 years
Price excluding VAT
(at the time of the review)
$499

QSAN XN3002T 2-bay NAS Review
